Description
Simple Introduction

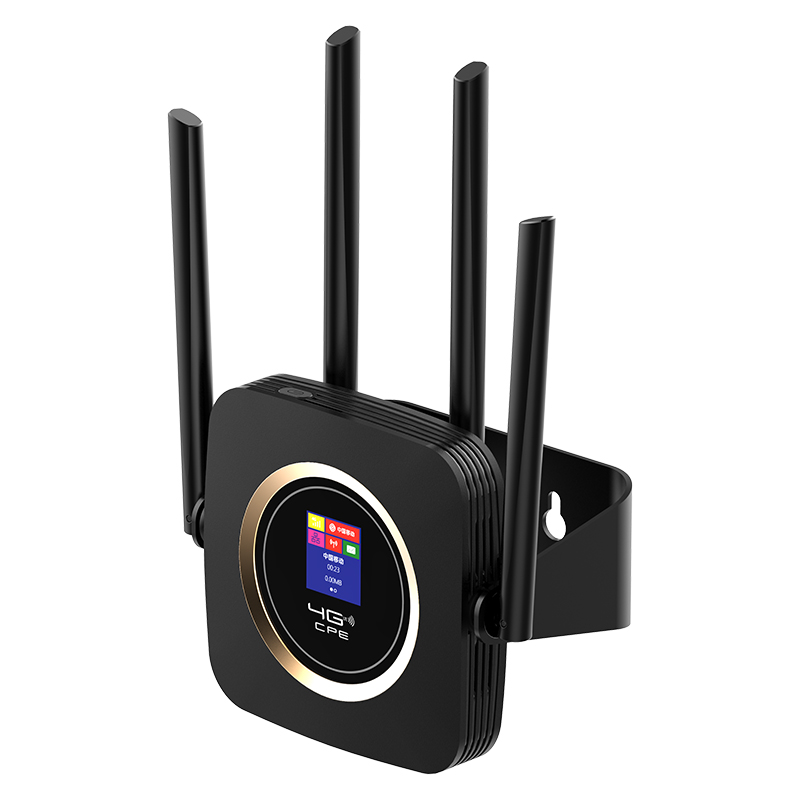

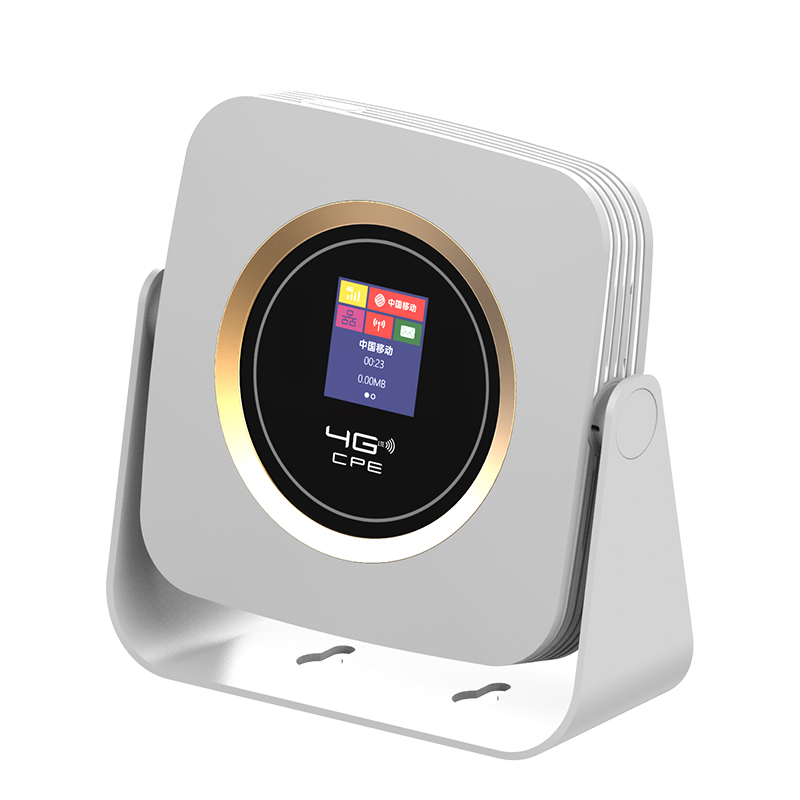

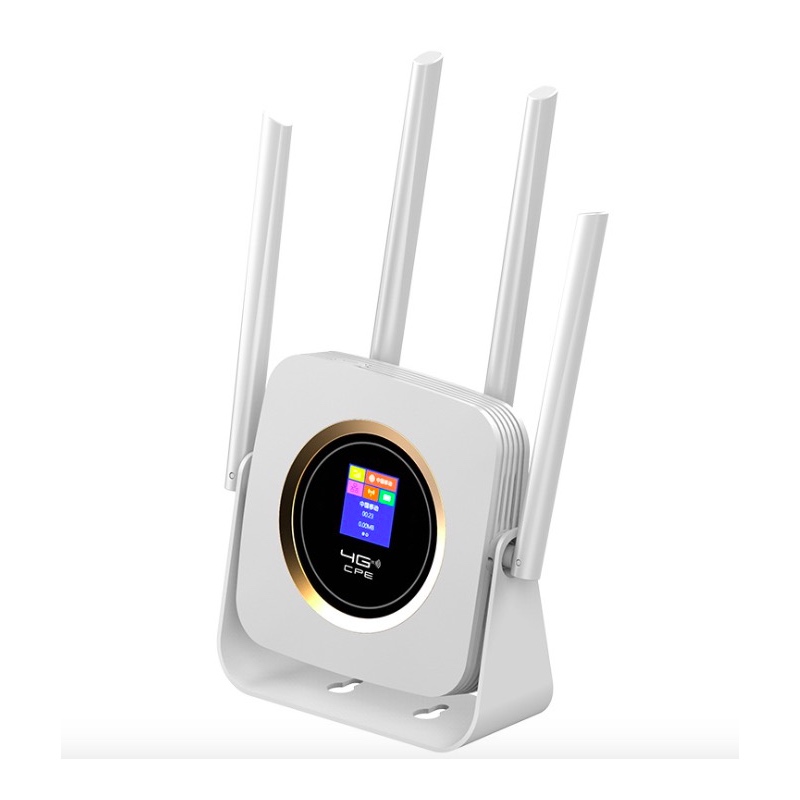

The HC-CPF903 use MTK solution, one 10/100Mbps WAN/LAN port, one USB port accept powering in, one SIM card slot, 2.4G Wifi rate up to 150mbps, with LCD screen to shows operation information, support WAN to LAN and wifi, 4G to LAN and Wifi, 3000mAh battery as optional.
Product Datasheet
| Hardware Platform | HW_VER | HC-CPF903 | |||
| MTK Chipset | MT6735WM | ||||
| RAM/ROM | 4G Byte EMMC+512MByte DDR2 | ||||
| Band | FDD LTE: B1,B3,B5,B7,B8,B20 | TDD LTE: B38,B39,B40,B41 | WCDMA:
B1,B5,B8 |
GSM:
900/1800Mhz |
|
| 3GPP | 3GPP R9 Cat.4 | 3GPP R9 Cat.4 | 3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM) | 3GPP2 | |
| Transfer rate | up to 150Mbps DL up to 50Mbps UL | up to 150Mbps DL up to 50Mbps UL | HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL | 3.1Mbps DL | |
| Wi-Fi Chipset | MT6625L | ||||
| Wi-Fi | IEEE 802.11b/g/n | ||||
| Wi-Fi rate | up to 150Mbps | ||||
| Encryption | Wi-Fi Protected Access™ (WPA/WPA2)2 | ||||
| Antenna | 2pcs*2.4G Wifi antennas, 2pcs* LTE antennas | ||||
| Customization | Smart system, strong customization ability | ||||
| Display | LCD | Color display | |||
| LED | LED | ||||

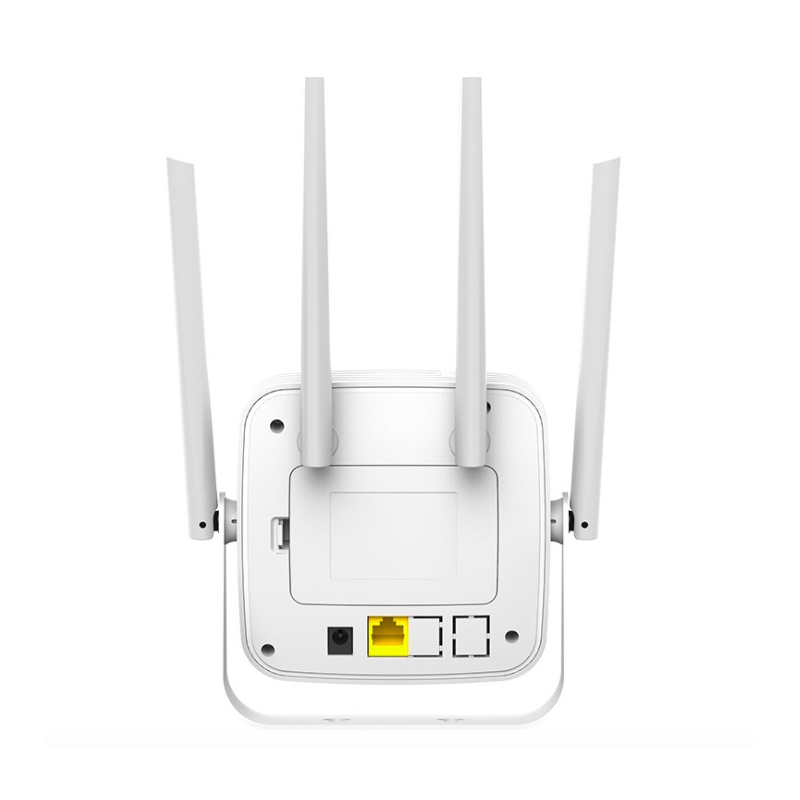

| Port | Button | 1 Power on/off button, 1 Reset button | |||
| SIM slot | 1 SIM slot, 2 SIM slot as optional(battery and 2 sim slots can’t be together) | ||||
| USB port | USB TYPE A (5V 1A IN) | ||||
| DC | 12V 1A IN | ||||
| RJ45 | 1* WAN/LAN port | ||||
| Battery | 3000mAh, 6-8hours working time | PS. The battery does not support hot-plug | |||
| Internet | Wi-Fi | Wi-Fi AP，Max 10 users | |||
| SSID | 4G-CPE-XXXX（last 4 digits of the IMEI number） | ||||
| WIFI password | 1234567890 | ||||
| Operating Environment | Working temperature | -10°C to 65°C | |||
| Working height | Current tested max height 3000m (10,000 inches) | ||||
| Operation system | PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10 | MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later | IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later | Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later | |
| Operation Browser | Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari or above | ||||
| Software Platform | System | Android 6.0 | |||
| WEB | Gateway | http://192.168.199.1 | |||
| Log in | Password：admin ( password modification requested to done at first logging as default setting Language(Chinese/English) |
||||
| Status | Connection; APN;IP; Signal Strength; Battery Capacity; Connecting time; Users | ||||
| Networks | APN configuration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore default APN parameters. Traffic statistics: Traffic Limitation: Afering reaching the set value, limit the speed as set. |
||||
| Wifi | WLAN configuration: SSID modification, encryption methods, encryption password, Maximum user number setting, support PBC-WPS WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover access to internet. |
||||
| Ethernet mode | No Ethernet Network, LAN Mode, WAN Mode, WAN Modem (PPPOE) | ||||
| System Manage | Login password management: User name, password modification System operation: Restart, Shutdown, Restore factory setting System Information: Check software version, WLAN MAC address, IMEI NO. Phonebook setting: New, modify, look up, delete contact GPS control: GPS function turn on/off |
||||
| SMS Management | SMS create, delete, send | ||||
