Description
Product Feature
* Supper Cost-effective Hardware Configuration
The main control chip with industrial-grade circuit design supports IEEE802.11b/g/n protocol, which provides 300Mbps wireless access speed and 100Mbps Ethernet switching processing speed. The excellent anti-high and low temperature design fully guarantees that user network data can be transmitted in real-time, long-term, stable and high performance in extreme environments to enhance user experience.
* Powerful Wireless Transmission
The use of high power and high reception sensitivity circuit design greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.
* Simple and Efficient Pairing
No need for network expertise, no computer operation, just dial the code and adjust the digital tubes of the master and slave devices to the same value to complete the point-to-point or point-to-multipoint (up to 8 points) pairing work.
* Flexible Power Supply Options
The equipment not only supports the power supply method of POE remote network cable power supply, but also supports the power supply method of 12V 1A DC local connection power supply to meet the needs of various scenarios, reduce the construction cost and choose the power supply method flexibly.

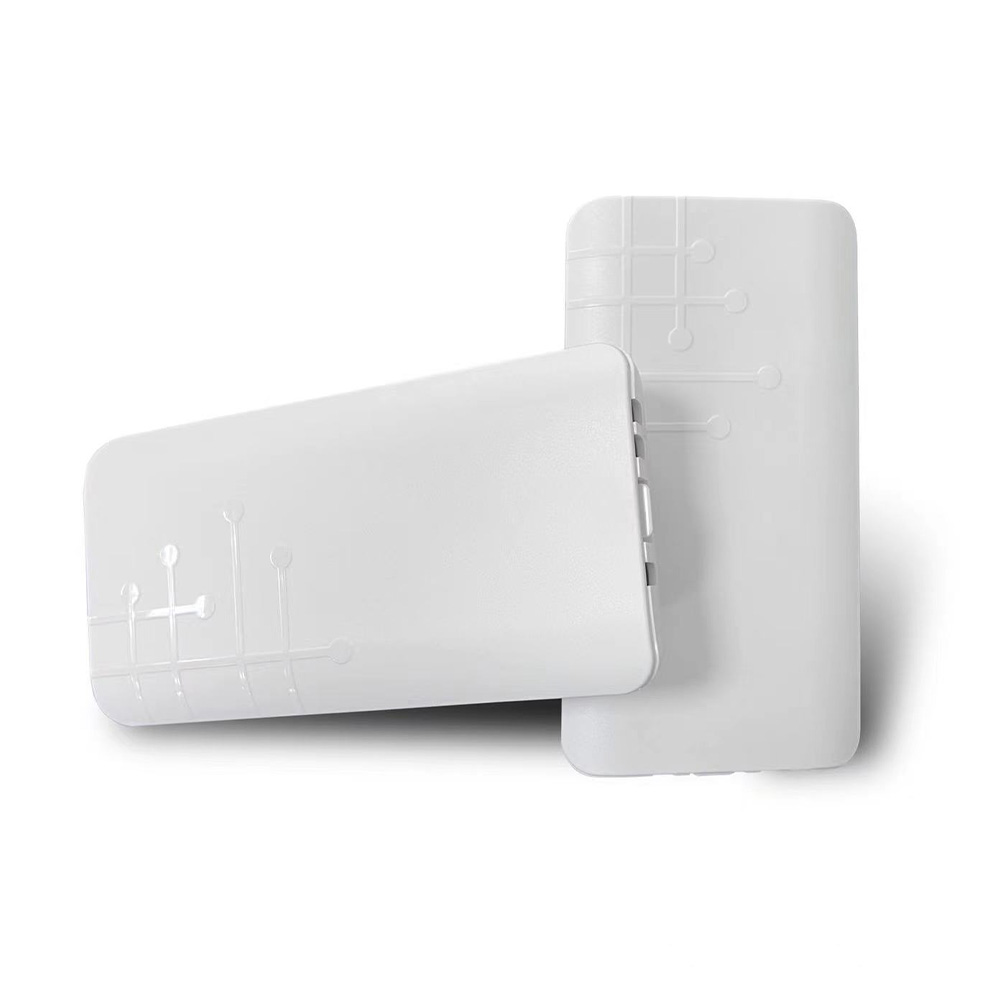

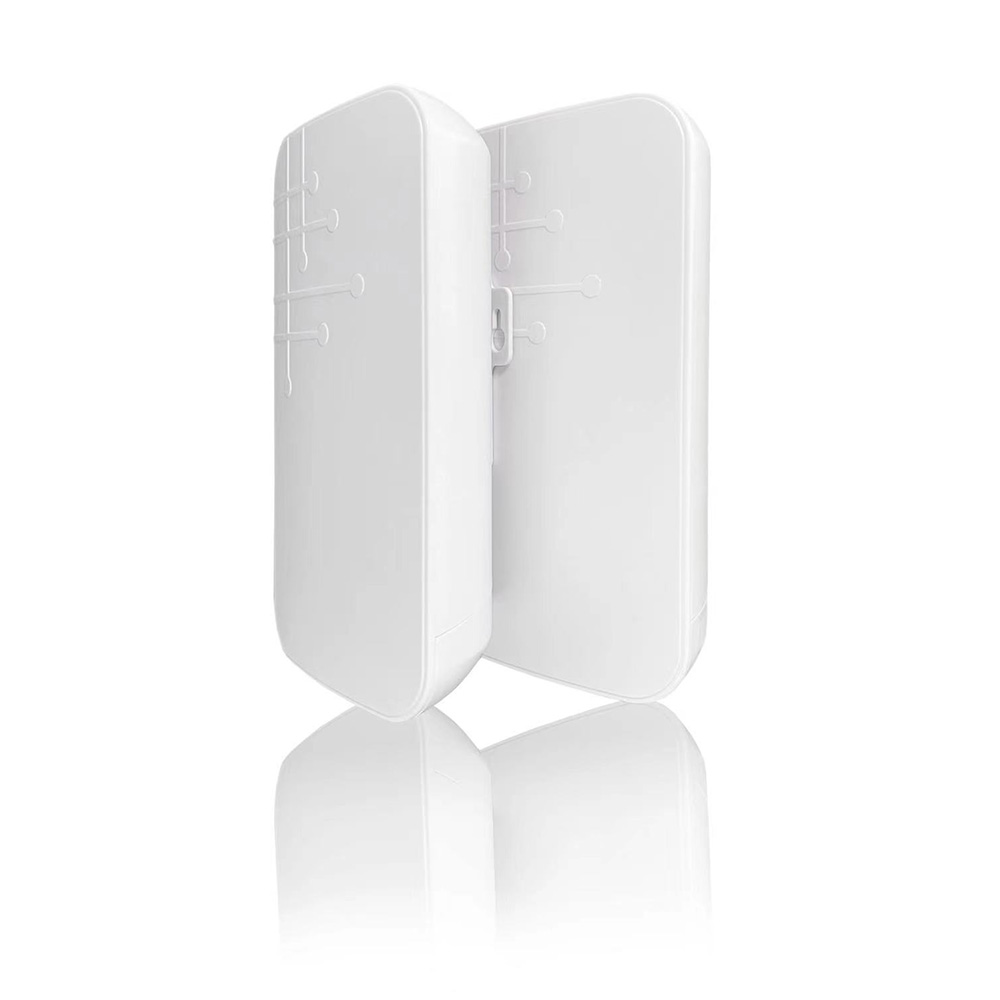

* ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective
ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country, with flexible and simple installation method, with wall hanging, holding rod fixed installation method, on the basis of not affecting the original design, greatly reducing the construction difficulty of the construction personnel, improve the construction efficiency.
Product Datasheet
| Product Parameter | |
| Hardware Profiles | |
| Model | WB200 |
| Main chip | MTK7628 |
| Dominant frequency | 580MHz |
| Wireless technology | 2.4G:300M 802.11b/g/n MIMO technology |
| Memory | 8MB DDR RAM |
| Flash | 1MB |
| Network interface | 2*10/100 MbpsAdaptive network interface |
| Button | 1*Digital Switch / reset button，Short press on the digital tube display value to add one， Press it long for 15 seconds to restore the factory settings |
| Guiding lights | LAN network interface status indicator, power indicator |
| Power | 24V 0.5A POEpower supply；
DC 12V 1A，capacity factor﹤10W |
| Work environment | Temperature storage：-30℃～+55℃（work），-40℃ ～+70℃（storage）
temperature（Non-condensation）：10％～90％（work），5％～95％（storage） |
| Product size | 140mm×75mm×34mm |
| Product weight | 0.15kg |
| Antenna | 5dbi directional plate antenna (Horizontal wave half Angle 90°，Vertical wave half Angle90°) |
| RF Characteristics | |
| Frequency range | ISM Band: 2.400GHz ~ 2.4835GHz |
| Channel distribution | 2.4G：1、2、3、4、5、6、7、8、9、10、11、12、13 |
| Modulation mode | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
| Output power | 802.11n: @MCS7:14±2DB, @MCS0:16±2DB
802.11g: @54M:15±2DB, @6M:17±2DB 802.11b: @11M:17±2DB, @1M:19±2DB |
| Receiving clarity | 802.11n: -70dbm@MCS7, -88dbm@MCS0
802.11g: -72dbm@54Mbps, -88dbm@6Mbps 802.11b: -85dbm@11Mbps, -94dbm@1Mbps |
| EVM | 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| Frequency deviation | ±20ppm |
| Software Features | |
| Working modes | Main AP second AP（Switch ） |
| Main network mode | point to point, point to-point (within 8 points) |
| Management mode | WEBtelemanagement |
| Bridge configuration | Wireless mode: bridge access point / bridge client
Access point: bridge ssid / encryption mode / bridge password / protocol / bandwidth / channel / power Client: bridge ssid / encryption mode / bridge password / paired-end mac address / channel / power |
| Network settings | Automatic acquisition / static ip |
| System | Password modification / reset / upgrade |
