• 5G Cellular

Built-in Qualcomm™ SDX62 modem, it has best 5G mobile network performance and works with integrated world-wide5G to 3G multi-mode.

• Wi-Fi 6 (802.11ax)

The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line，more client connection, lowerlatency, best network efficiency.

• Higher Wireless Capacity

Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of minewhile enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.

• Hybrid MESH+ Networking

The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover allcorners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments ofwireless network and optimized the seamless feature.

5G Datasheet

• 5G Cellular

1) 5G Baseband: Qualcomm® Snapdragon™ X62 Modem-RF System

2) 5G Network Modes: SA (standalone), NSA (non-standalone)

3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79

4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79

5) 5G SA Transmission Speed:DL 2.4 Gbps; UL 900 Mbps

6) 5G NSA Transmission Speed:DL 3.3 Gbps; UL 600 Mbps

4G Cellular

• 4G Cellular

8) LTE Category：Down Cat 16/ UP Cat 18

9)LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

11)LAA: B46 (only support 2 × 2 MIMO)

12) WCDMA:B1/B2/B4/B5/B8/B19

13) LTE : Down 1.6 Gbps；UP 200 Mbps

14) WCDMA: 42Mbps; UL 5.76Mbps

Wifi6 Datasheet

• Wifi6 (802.11ax)

1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz

2) Coding Technology:1024-QAM / OFDMA

3) Peak Connections:>100+ Clients

4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward

5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components.

• Data Switching

1) Mobile 4G/5G Connection (Support APN)

2) Gigabit Ethernet Connection

3) MESH:MESH+ hybird

4) 2.4G/5Ghz WiFi

5) Advanced Firewall

6) MAC Filter

7) WiFi Sercurity

8) VPN Passthrough and VPN Client (L2TP PPTP)

9) IPV4/IPV6

10) WEB / APP Mangement

11) Firmware upgrade

Hardware Specification

1) CPU: MT7621AT

2) Memory:16MB Flash + 256MB DDR3

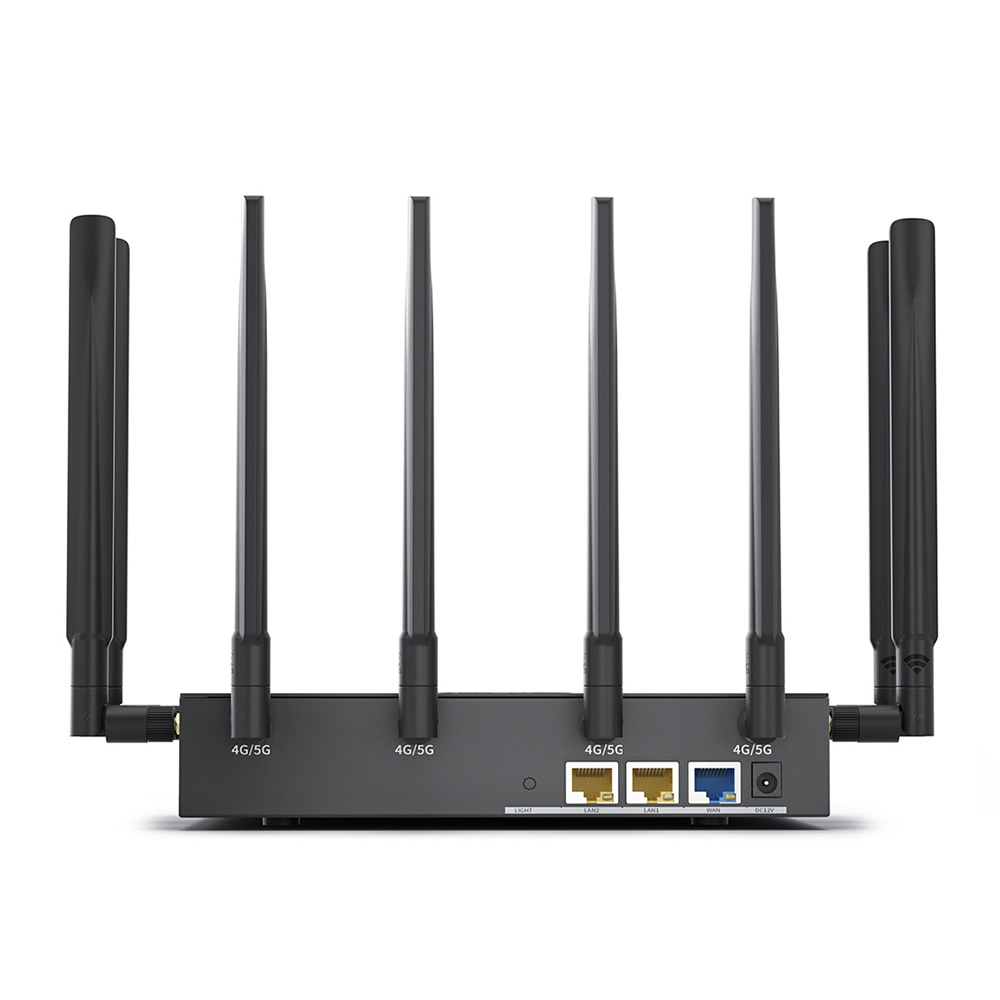

3) Ethernet:1*1Gbps WAN,2*LAN 1Gbps

4) 1* SIM Slot（Nano-SIM）

5) Reset button, MESH+ Button

7) MESH+ LED Switch

8) LED Indicator

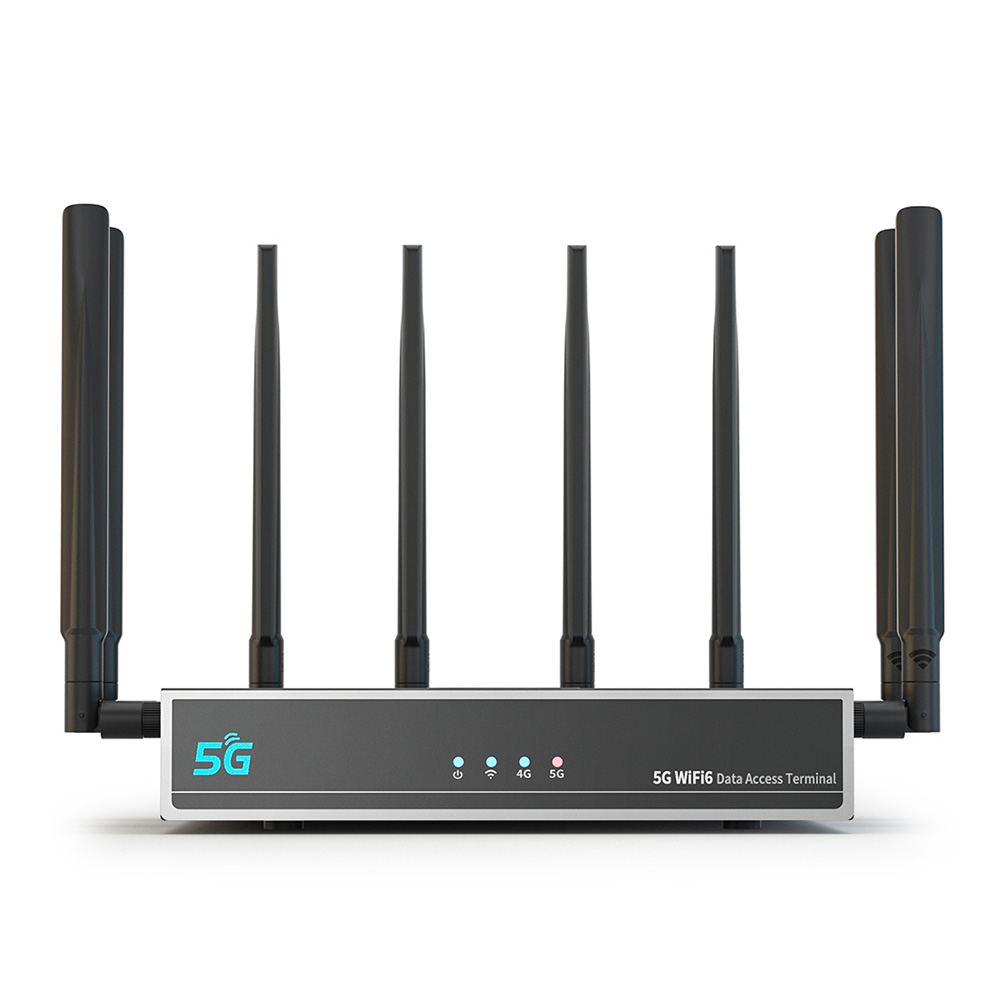

– MESH+ Working Status (breathing light), 4G Status, 5G Status, WiFi Status, Power Status

9) General

– Power Consumption:<20W

– DC Power Supply: 12V/2A

– Working temperature:0℃～40℃, Storage temperature: -20℃～+70℃

– Humidity:5%～95%
