Description
Simple Introduction

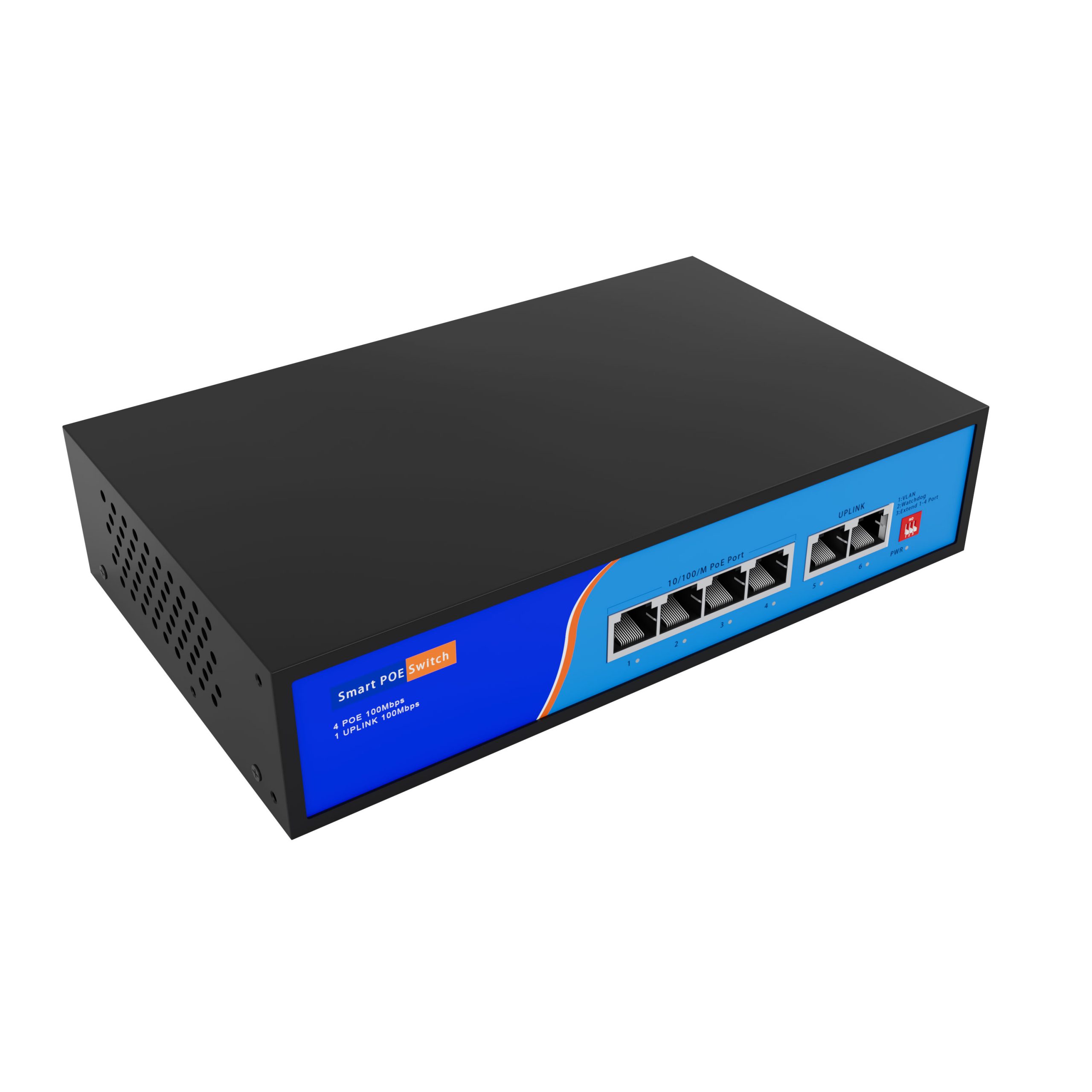

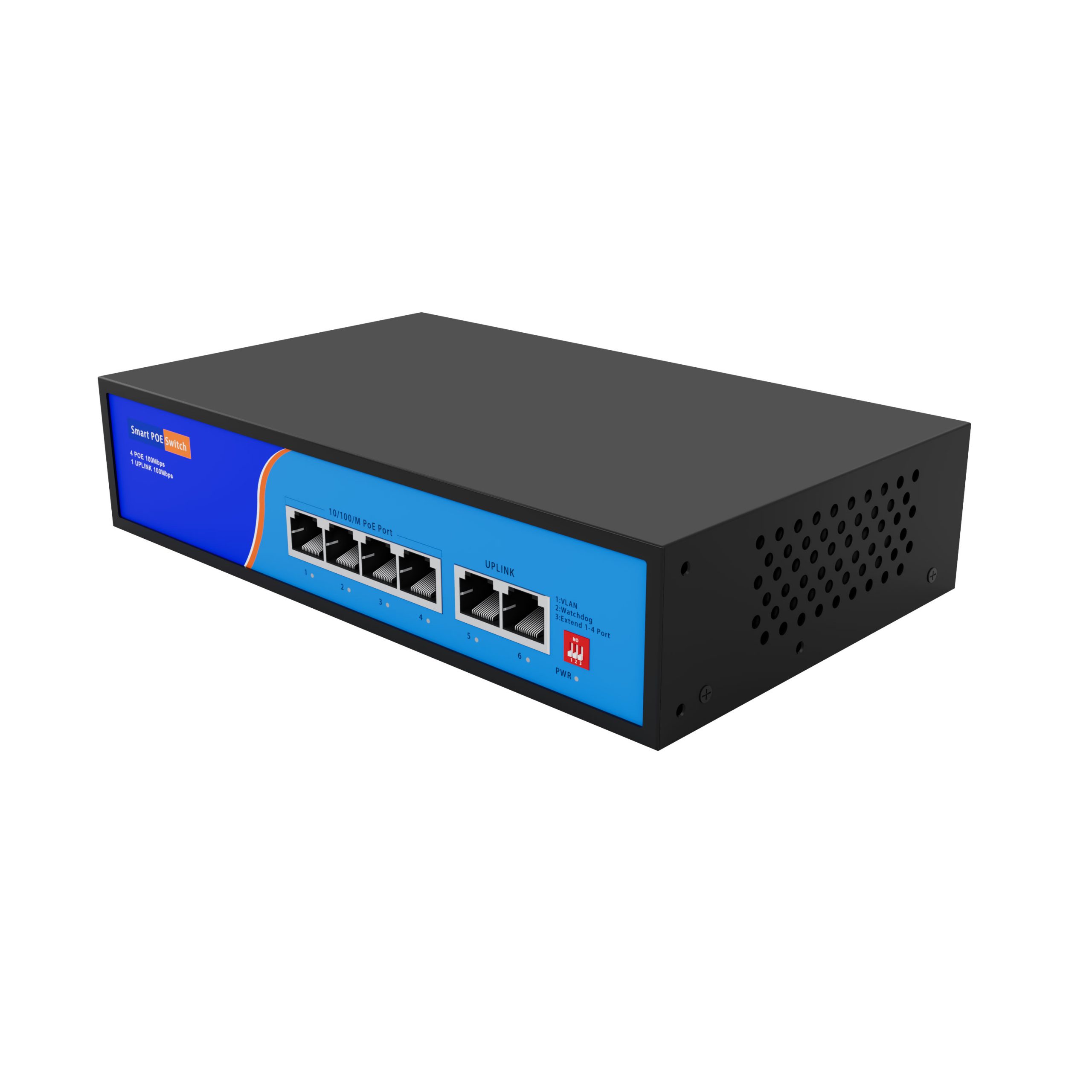

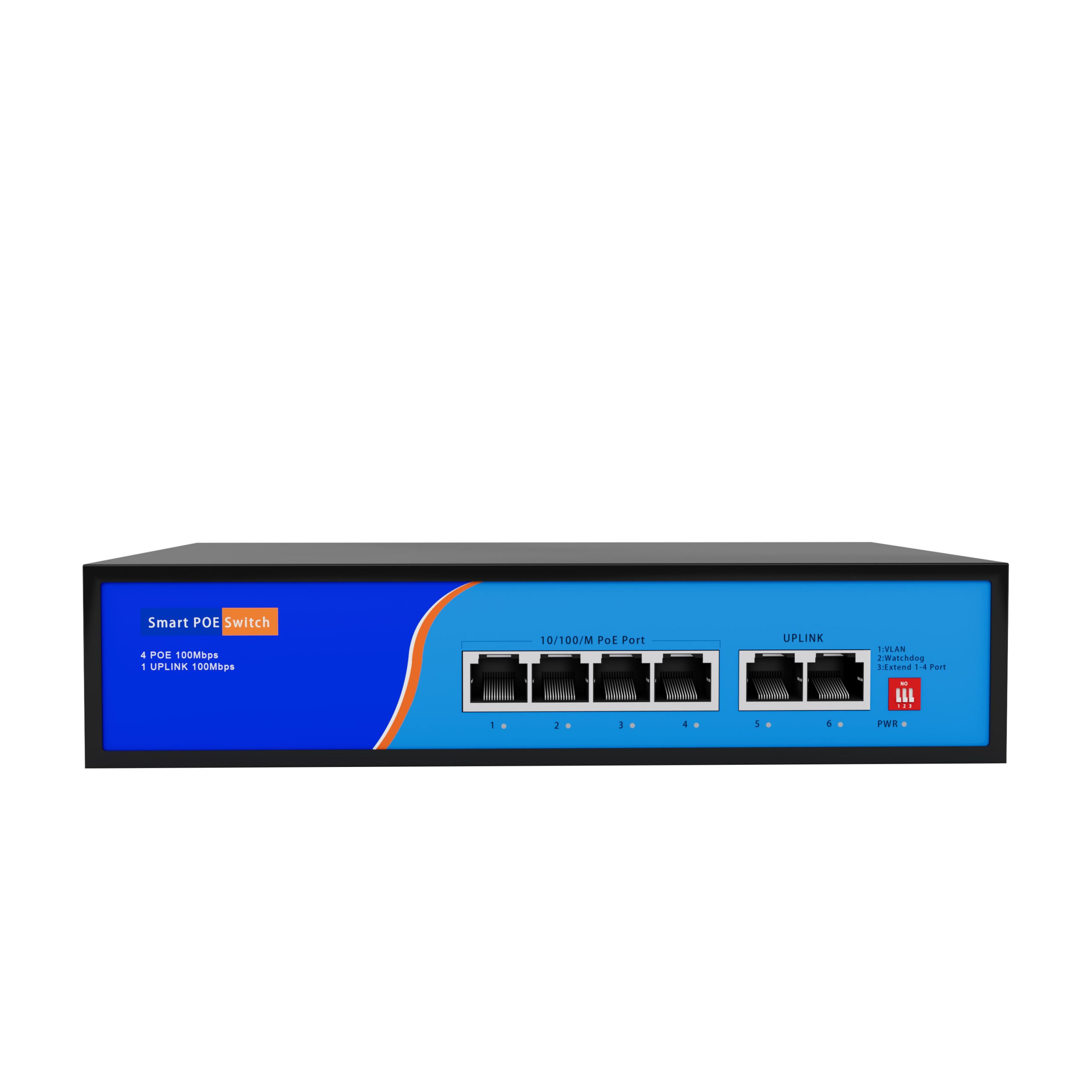

HC-F0402P series unmanaged PoE switches with 4 100 Megabit electrical ports + 2 100 Megabit uplink electrical ports, of which ports 1-4 support IEEE 802.3af/at standard PoE power supply, with single-port PoE power up to 30W. HC-F0402P service ports support 4KV electrostatic lightning protection, and the downlink port supports POE watchdog automatic restart troubleshooting function, port VLAN isolation function and one-key 10m/250m long-distance transmission mode and other diversified functional switches, the use of operation and maintenance is simpler and more efficient; As a PoE power supply device, it can automatically detect and identify powered devices that meet the standard and supply power to them through the network cable. It can supply power to POE terminal devices such as wireless AP, webcam, IP telephone, and visual access control intercom through the network cable to meet the demand for high-density PoE power supply network environment, which is suitable for hotels, campuses, parks, communities and small and medium-sized enterprises to establish an economical and efficient network.
Non-network management model, plug and play, no configuration, easy to use.
Product Datasheet
| Model | HC-F0402P | ||
| Port Characteristics | |||
|
Fixed Port |

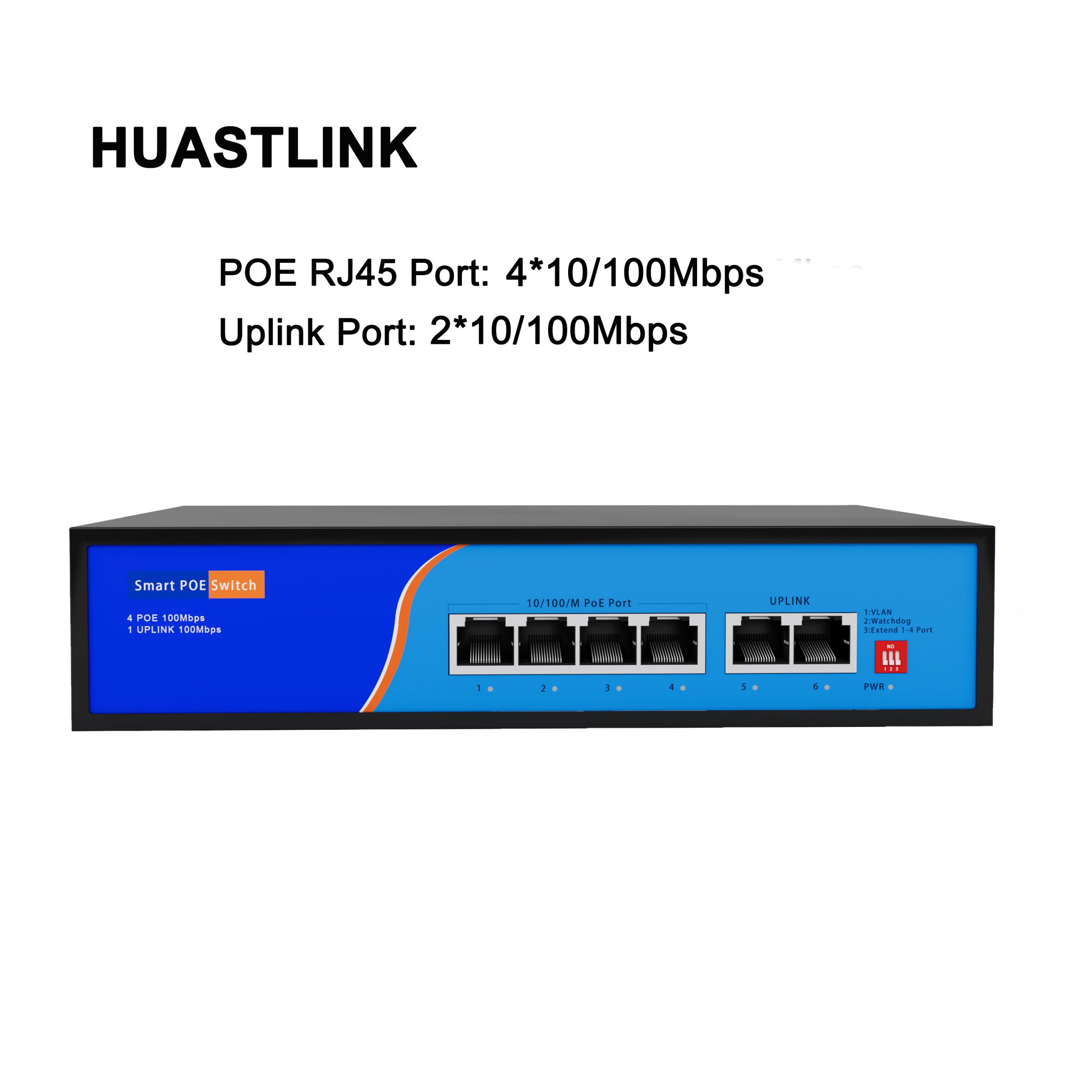

Downlink port | 4* 10/100Base-TX RJ45 network port | |
| Uplink port | 2* 10/100Base-TX RJ45 network port | ||
| PoE port | 1-4 Support af/at standard PoE power supply,Transmission distance 100-250 meters | ||
| Port Characteristics | 1-6 ports 10/100M adaptive, full/half duplex MDI/MDI-X adaptive | ||
| Twisted Pair Transmission | 10BASE-T：Cat3,4,5 UTP(≤250 meter)100BASE-TX：Cat5 or later UTP(≤100 meter) | ||
|
Function Switch |
Tranche1：VLAN | Toggle to “ON” to realise the function of power supply port isolation, default “OFF” | |
| Tranche2： PoE Watchdog | Toggle to”ON” to enable the PoE auto restart function of the power supply port, default “OFF” | ||
| Tranche3：Extend | Toggle to “ON” to turn on the power port to achieve 10m/250m long distance function, default “OFF” | ||
| Switching Chip Parameter | |||
| Network Management Type | Unmanaged switch | ||
| Networking Protocol | IEEE802.3 10BASE-T；IEEE802.3i 10Base-T；IEEE802.3u 100Base-TX；IEEE802.3x Flow Control；IEEE 802.3af DTE Power via MDI；IEEE 802.3at DTE Power via MDI； | ||
| Transfer Mode | Store-and-forward（top speed） | ||
| Backplane Bandwidth | 1.6Gbps （non-obstructive） | ||
| Packet Forwarding Ratio@64byte | 0.89Mpps | ||
| MAC Address Table | 1K | ||
| Packet Forwarding Cache | 768Kbits | ||
| Giant Frame | 1536bytes | ||
| Indicator Light | Power indicator: PWR (green); Network indicator: 1-6 (green) | ||
| MTBF | 100,000 hours | ||
| POE and Power Characteristics | |||
| POE Port | 1-4 ports support IEEE802.3af/at standard POE power supply | ||
| Power Supply Pins | Default 1/2(+), 3/6(-) 4-pole power supply | ||
| Maximum PoE power per port | 30W，Standard IEEE802.3af/at | ||
| Total Power/Input Voltage | 48W （AC100-240V） | ||
| Power Consumption | Standby power consumption: <3WFull load power consumption: <65W | ||

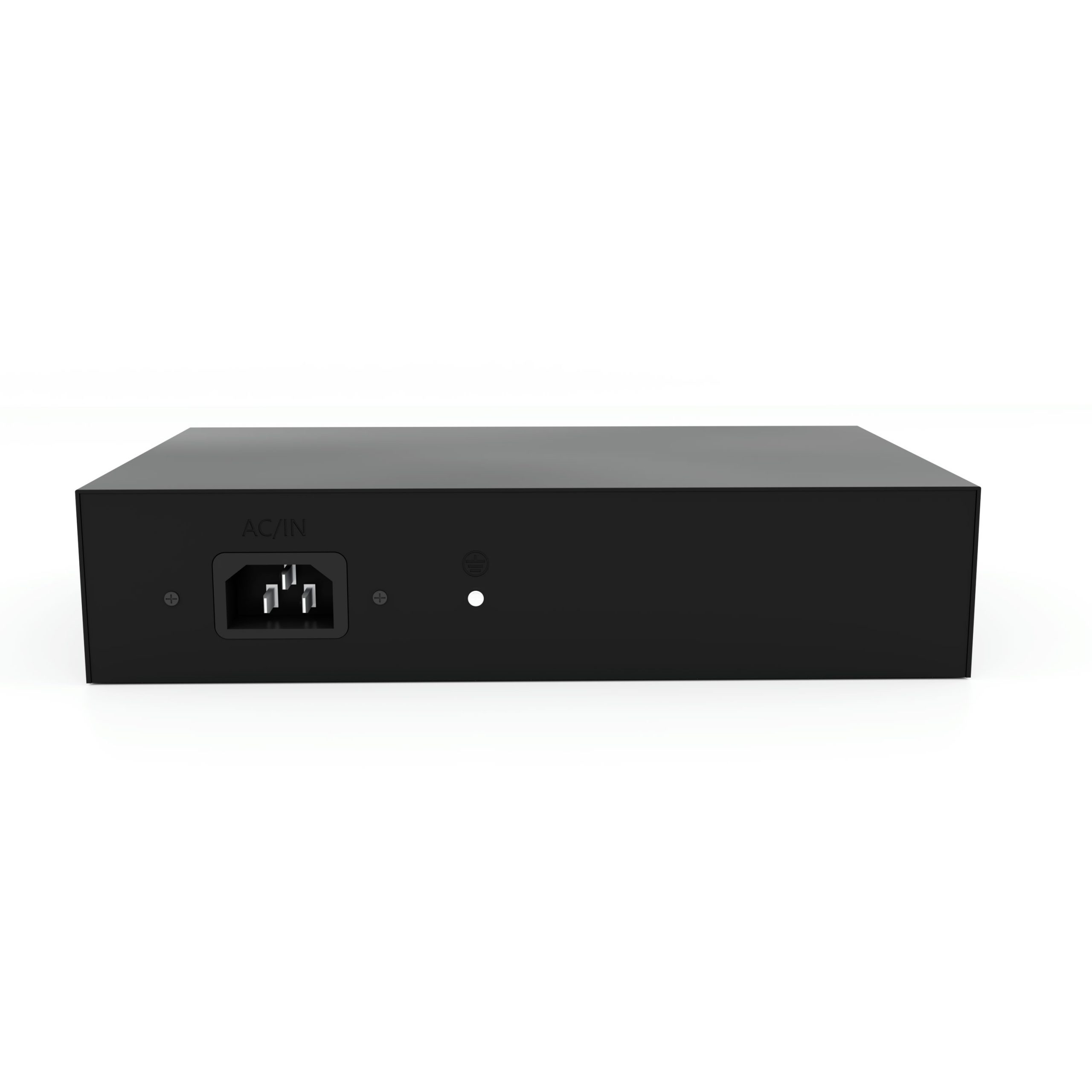

| Matching power supply | Built-in switching power supply ,AC: 100~240V 50-60Hz 1A | ||
| Physical Specification Parameters | |||
| Operating Temperature/Humidity | -20～+55°C；5%～90% RH, non-condensing | ||
| Storage Temperature/Humidity | -40～+75°C；5%～95% RH, non-condensing | ||
| Appearance Size/packaging (L*W*H) | 200*118*44mm/220*197*47mm | ||
| Net/Gross weight | 0.58kg / 0.78kg | ||
| Installation Method | Desktop, wall mounted | ||
| Lightning Protection / Protection Level | Port lightning protection：4KV 8/20us；Protection Level：IP30 | ||
Packing List
| Item Name | Quantity | Unit |
| 4+2 100 Mbit Smart POE Switch | 1 | set |
| AC Power Cord | 1 | piece |
| Quick start guide | 1 | piece |
| Warranty Card and Certificate of Conformity | 1 | piece |
Euipment Information
| Equipment Name | Equipment Information | Standard Power Supply |
|
HC-F0402P |
Unmanaged 4 10/100M network ports + 2 10/100M uplink ports Smart PoE Switch, 1-4 ports support IEEE 802.3af/at international standard, support PoE watchdog auto restart, support port VLAN isolation, support 10M/250m long distance transmission, built-in power supply, desktop and wall-mounted installation. |
Input: AC100-240V Output: DC52V |
