Description
Simple Introduction

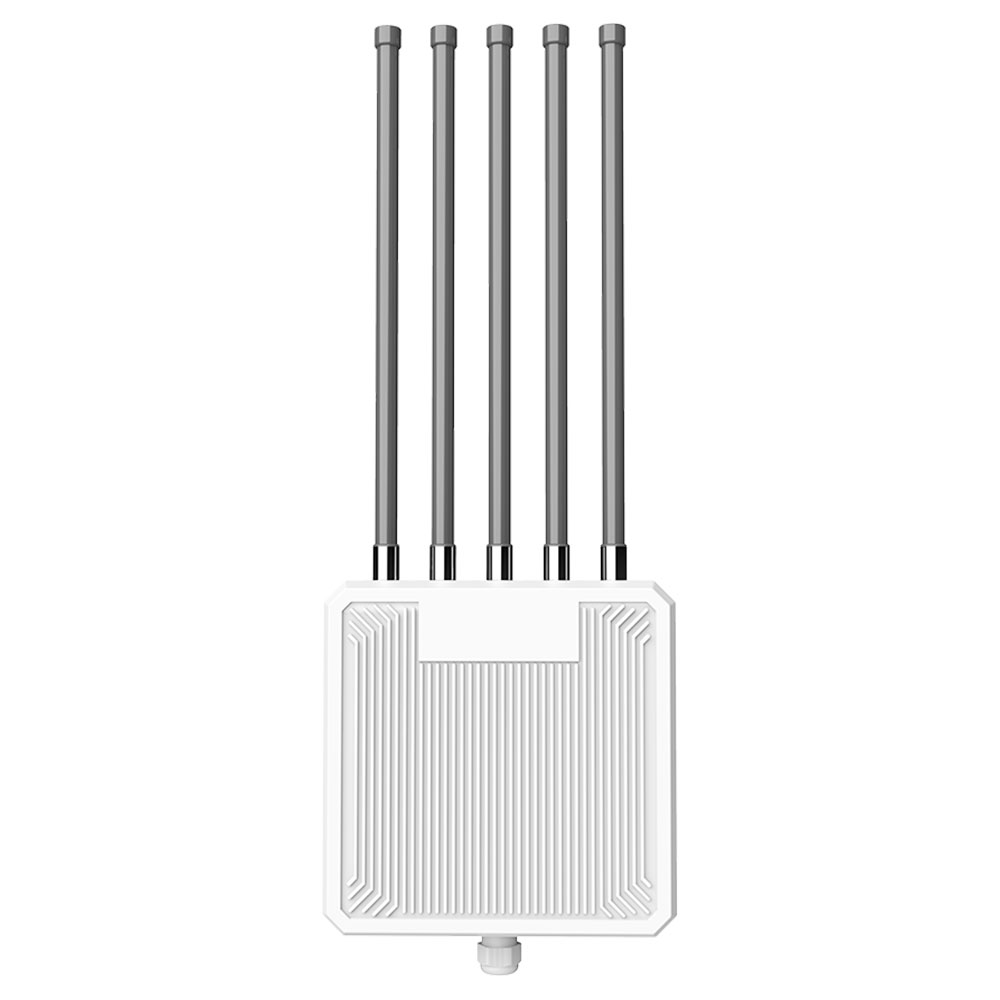

HC-AP3000 PRO is Gigabit Ethernet Wifi6 AX3000 Outdoor Access Point, Engineered for extreme environments, the HC-AP3000 PRO combines dual-chip architecture with a dual-core processor to deliver 3000Mbps WiFi6 speeds (574Mbps@2.4GHz + 2402Mbps@5GHz), supporting 200+ concurrent devices for lag-free connectivity. Its dual-band (2.4GHz/5.8GHz) anti-interference design ensures stable performance in crowded areas, while 5×8dBi high-gain fiberglass antennas paired with independent power amplifiers extend coverage up to 100 meters . Built with IP67 waterproof/dustproof and 15KV electrostatic protection, it withstands harsh weather (-40℃~+60℃). Offering PoE power supply (IEEE 802.3af/at) for 100m Ethernet power/data transmission, gigabit ports, and AC unified management for scalable deployments, this AP suits scenic areas, campuses, and industrial zones, delivering enterprise-grade reliability and long-range coverage.
Product Datasheet
| Model | HC-AP3000 PRO Outdoor AX3000 Wifi6 Access Point |
| WiFi Standard | IEEE 802.11b/g/n/ac/ax |
| Chipset | MT7981BA+MT7976DN |
| Flash | 16MB_SPI_NOR Flash+128MB_SPI_L NAND Flash |
| Memory | 256MB |
| Frequency | 2.4G: 2400 – 2484MHz |
| 5.8G: 5150 – 5850MHz | |
| Data Rate | 2.4GHz: 600Mbps5.8GHz:2400Mbps |
|
RF Power |
2.4G 11b≥28dBm/chain11n HT20≥24dBm/chain11ac HT40≥23dBm/chain11ax HT40≥17dBm/chain 5.8G 11n≥27 dBm/chain11ac≥23 dBm/chain11ax≥18 dBm/chain |
| Access Users | 256+ Clients |
| Ethernet | 1* Gigabit WAN/LAN RJ45 port, support 48V PoE |
| Button | Reset button |
| Indicator | 1 LAN port indicator; 1 green LED indicator |
| Antenna | 5*External detachable 8dBi antenna |
| Power Consumption | <16W |
| Power Supply | PoE, IEEE 802.3at standard |
| Water-Proof | IP67 protection level |
| MTBF | ≥85000H@25℃ |
| Working temperature | Working Temperature:-20℃～50℃ |
| Storage temperature: -30℃～70℃ | |
| Humidity | 5%～95% |
| Firmware Features | |
| Operation mode | AP, Router,Mesh, Repeater |
| Wireless Functions | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
| Support SSID hidden | |
| Support seamless roaming, 802.11kvr standard. | |
| Support 5.8G Prior for a faster Ethernet. | |
| Support MAC filter | |
| Support client isolation to improve the wireless stability | |
| VPN | VPN Passthrough and VPN Client (L2TP PPTP) |
| Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
| IP Protocol | IPv4/IPv6 |
| Device Management | web management |
| Support firmware back-up, restore, reset, upgrade | |
| Package Size | 241mm×240mm×36mm without antennas,Antennas with 400mm |
| Packing List | 1*HC-AP3000 PRO AX3000 Outdoor Wifi6 Access Point 5*8dBi omni antenna1*RJ45 Catch Cable(1 Meter)1*User manual |
